Surly Bikes

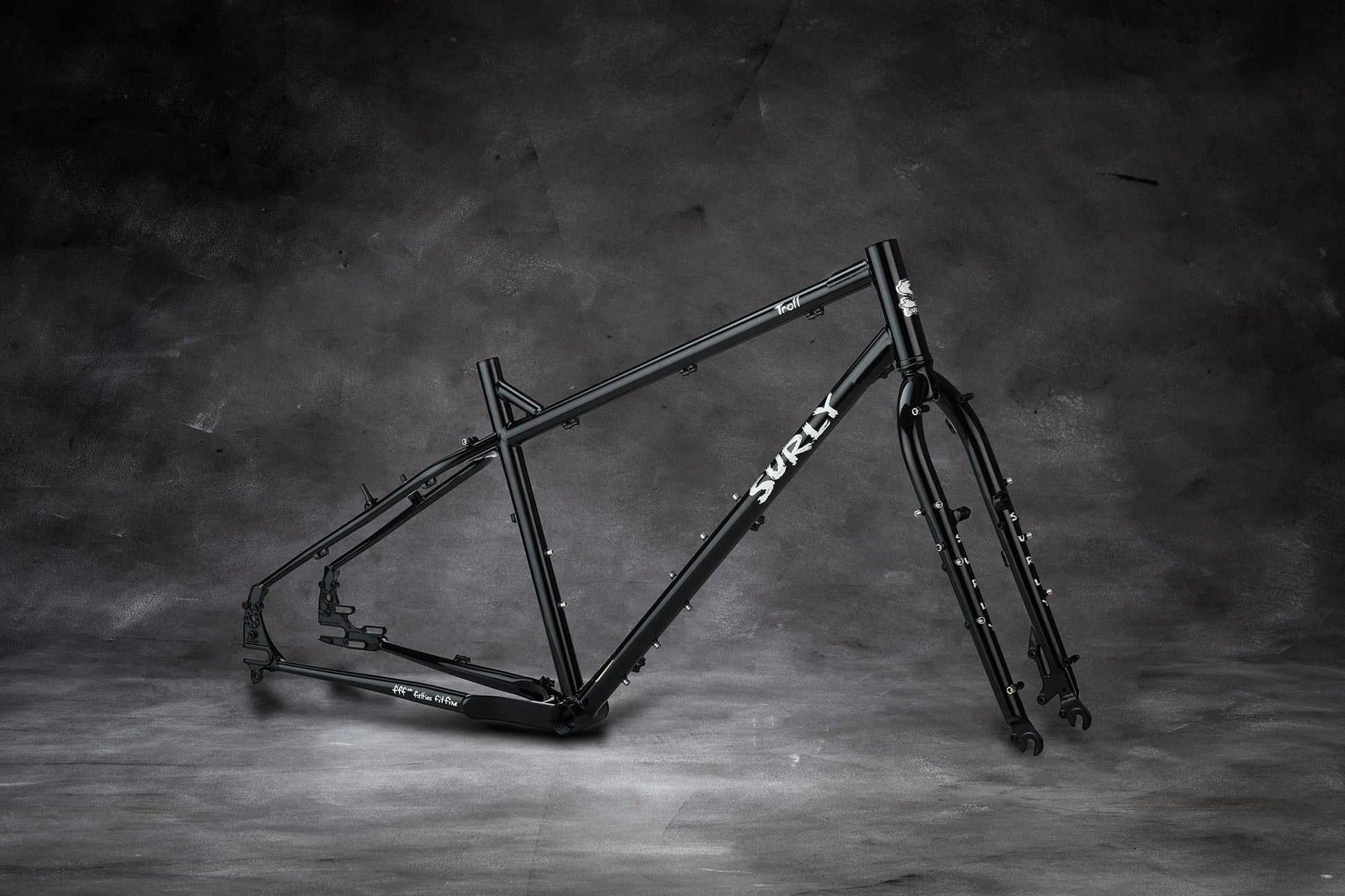

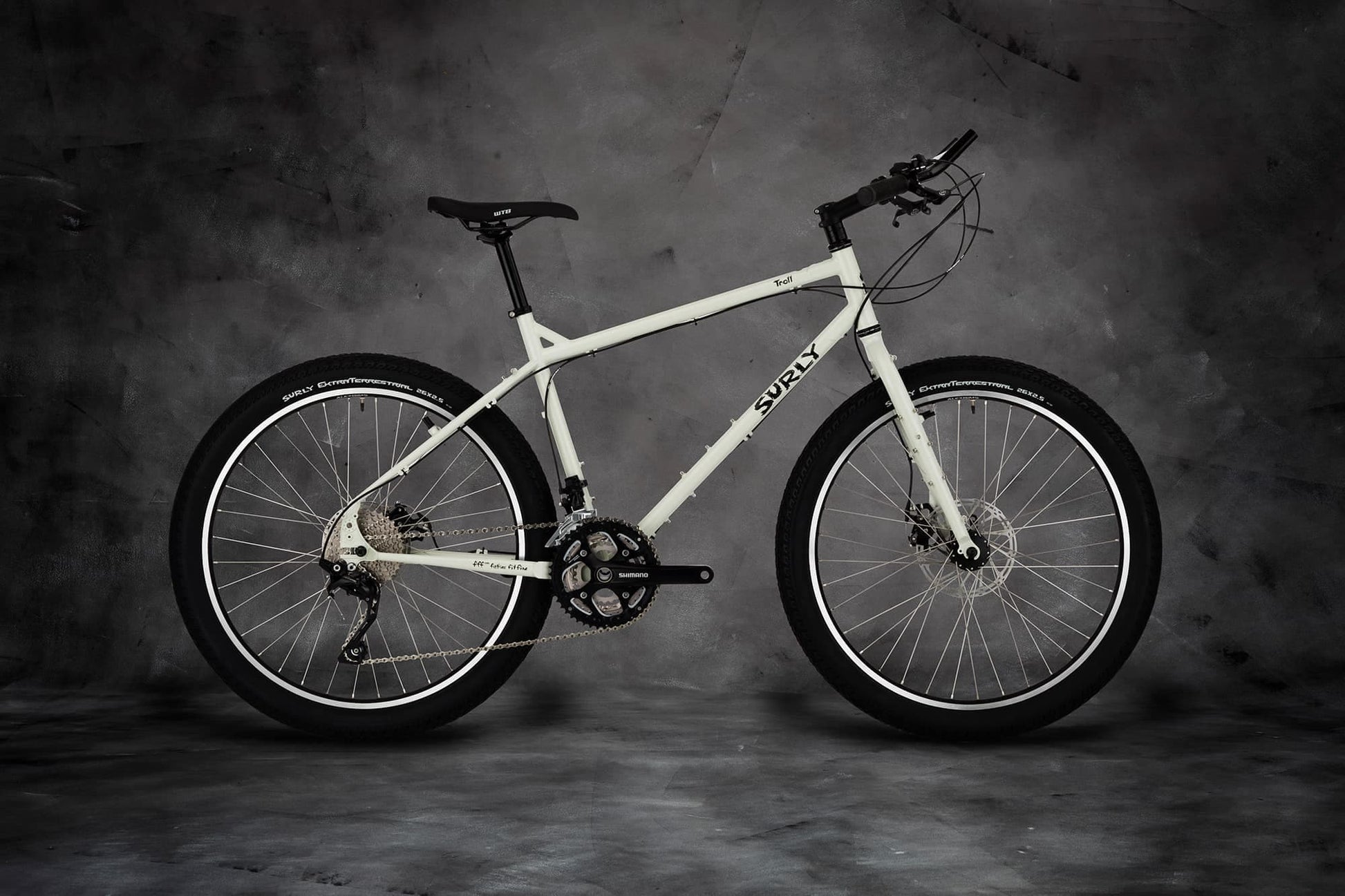

Troll
Troll
Regular price
$1,199.00 USD
Regular price
Sale price
$1,199.00 USD
Unit price
/
per
Couldn't load pickup availability
| SIZE | XS | S | M | L | XL (Frameset Only) |
|---|---|---|---|---|---|
| Reach | 371 | 393 | 415 | 431 | 446 |
| Stack | 551 | 561 | 570 | 585 | 604 |
| Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
| Head Tube Length | 125 | 135 | 145 | 160 | 180 |
| Seat Tube Length | 336 | 406 | 457 | 508 | 559 |
| BB Drop | 40 | 40 | 40 | 40 | 40 |
| Wheelbase | 1016 | 1041 | 1066 | 1086 | 1108 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| Top Tube Length, Actual | 530.6 | 546.7 | 568.1 | 589.0 | 608.6 |
| Top Tube Length, Effective | 545 | 570 | 595 | 615 | 630 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover Height | 720 | 749 | 778 | 809 | 843.0 |
| Stem Length | 90 | 90 | 100 | 110 | |
| Stem Angle | 7° | 7° | 7° | 7° | |
| Handlebar Width | 685 | 685 | 735 | 735 | |
| Crank Length | 170 | 170 | 175 | 175 | |
| Fork Length | 420 | 420 | 420 | 420 | 420 |
| Fork Rake | 43 | 43 | 43 | 43 | 43 |
