Surly Bikes

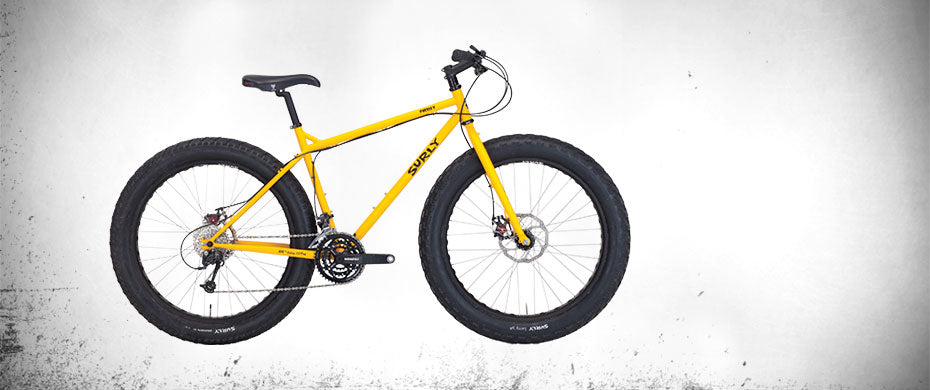

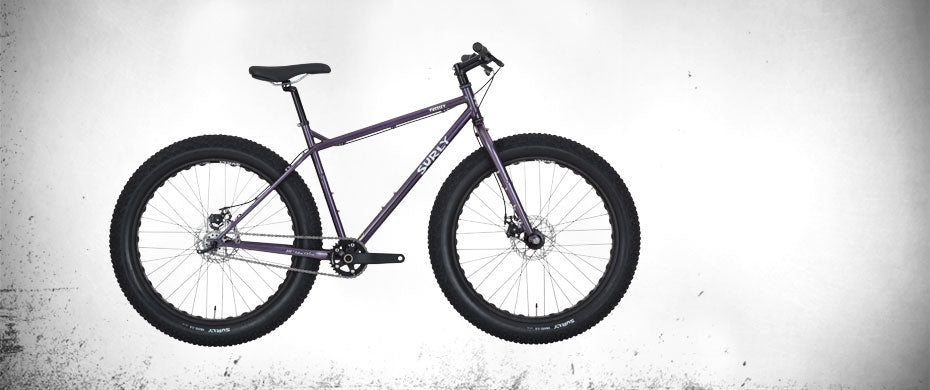

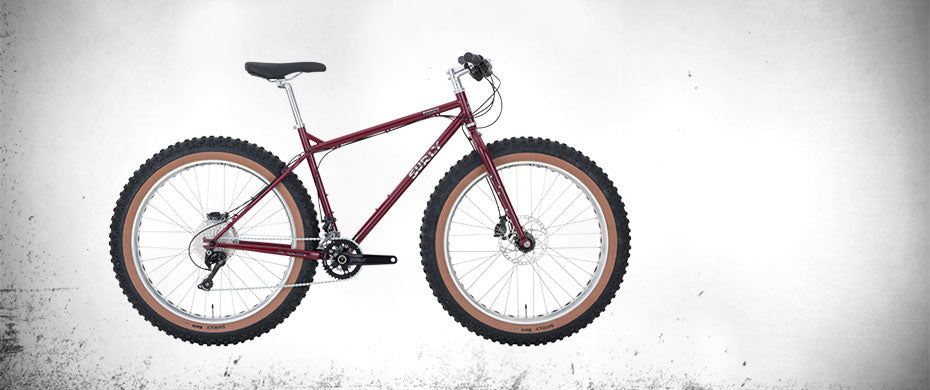

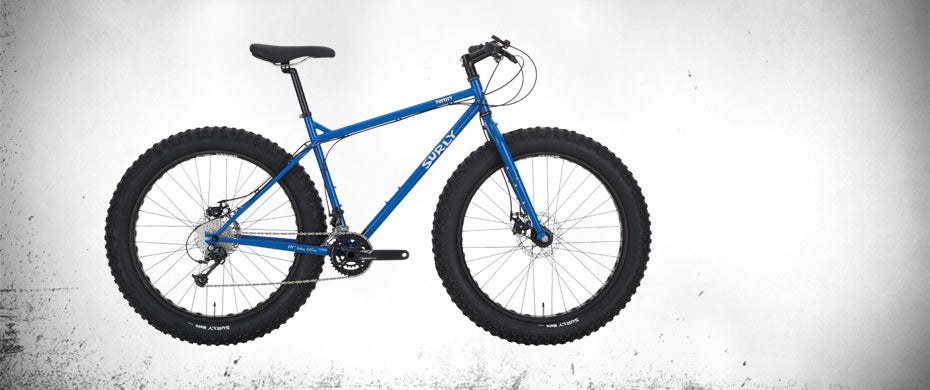

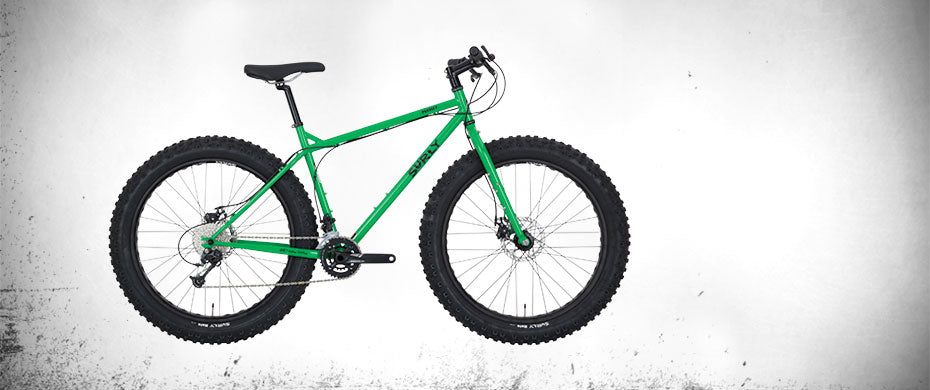

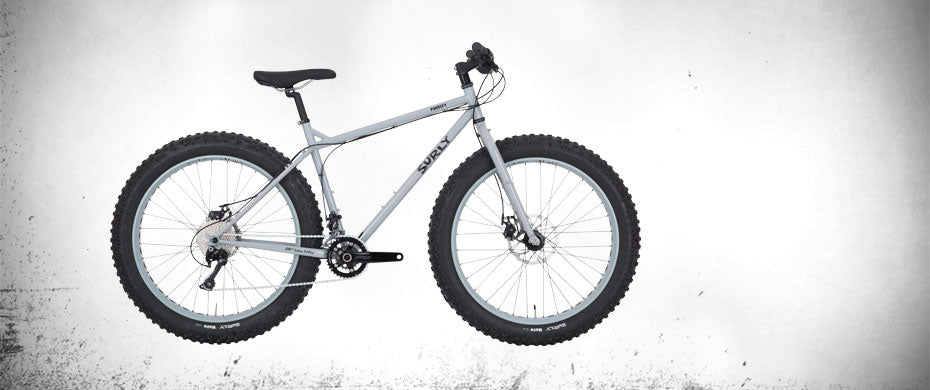

Pugsley

Pugsley

$1,499.00 USD
$1,499.00 USD
Sale Sold out
SIZE xSmall (14) Small (16) Medium (18) Large (20) xLarge (22)
Reach 387.7 395.6 407.2 416.1 424.9
Stack 558.9 567.5 576.9 593.9 612.8
Head Tube Angle 70.0° 70.5° 70.5° 70.5° 70.5°
Head Tube Length 95.0 102.0 112.0 130.0 150.0
Seat Tube Length 356.5 406.4 457.2 508.0 558.8
BB Drop 55.0 55.0 55.0 55.0 55.0
Wheelbase 1061.6 1067.4 1082.4 1097.3 1112.7
Chainstay Length 448.1 448.1 448.1 448.1 448.1
Top Tube Length, Actual 545.8 554.3 566.5 581.9 600.0
Top Tube Length, Effective 560.0 580.9 595.6 610.1 625.0
Seat Tube Angle 73.0° 72.0° 72.0° 72.0° 72.0°
Standover Height 734.9 758.7 786.5 819.6 853.0
Fork Length 447.0 447.0 447.0 447.0 447.0
Fork Rake 43.0 43.0 43.0 43.0 43.0


All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø740mm
