Surly Bikes

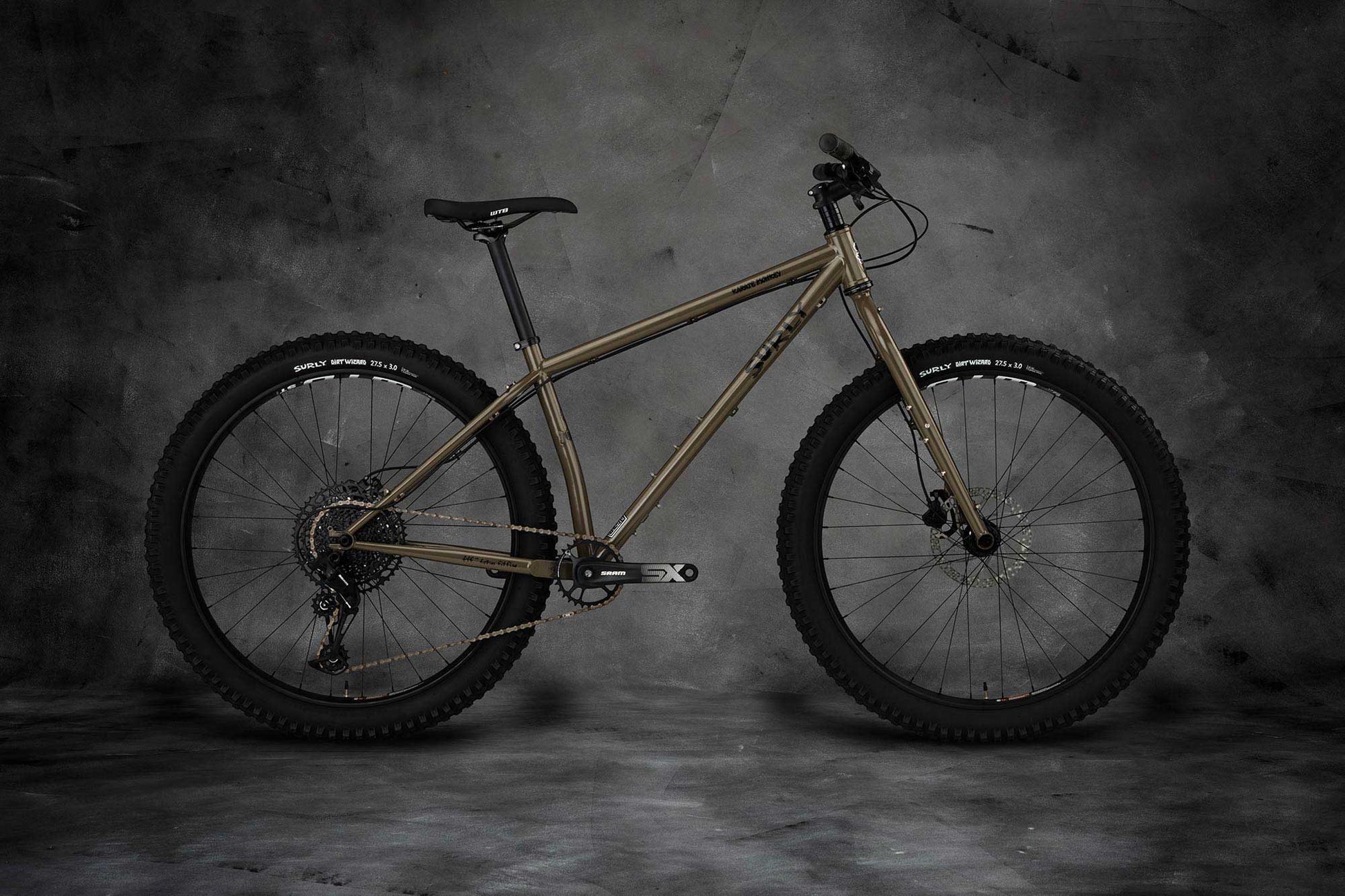

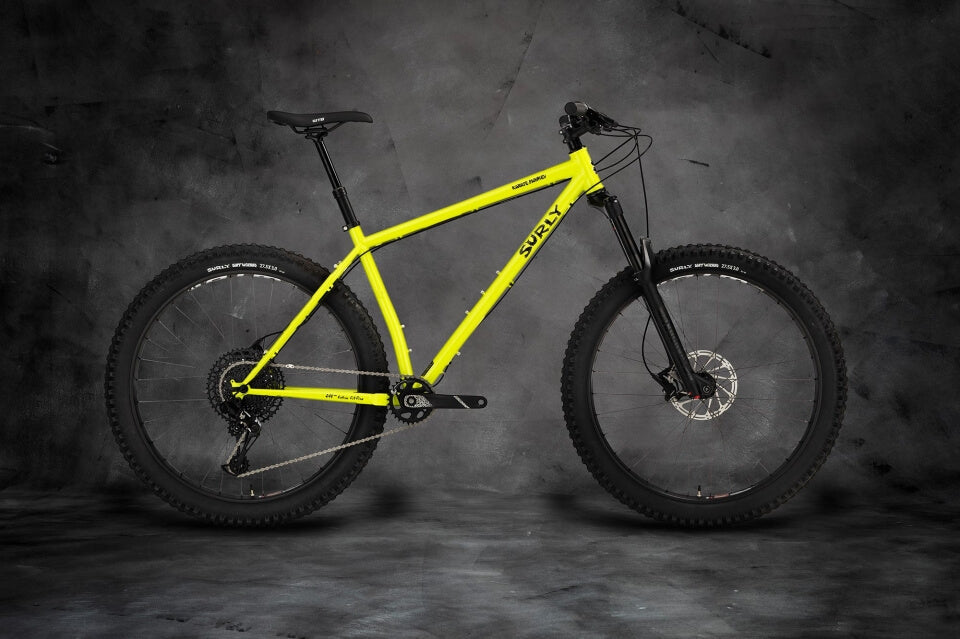

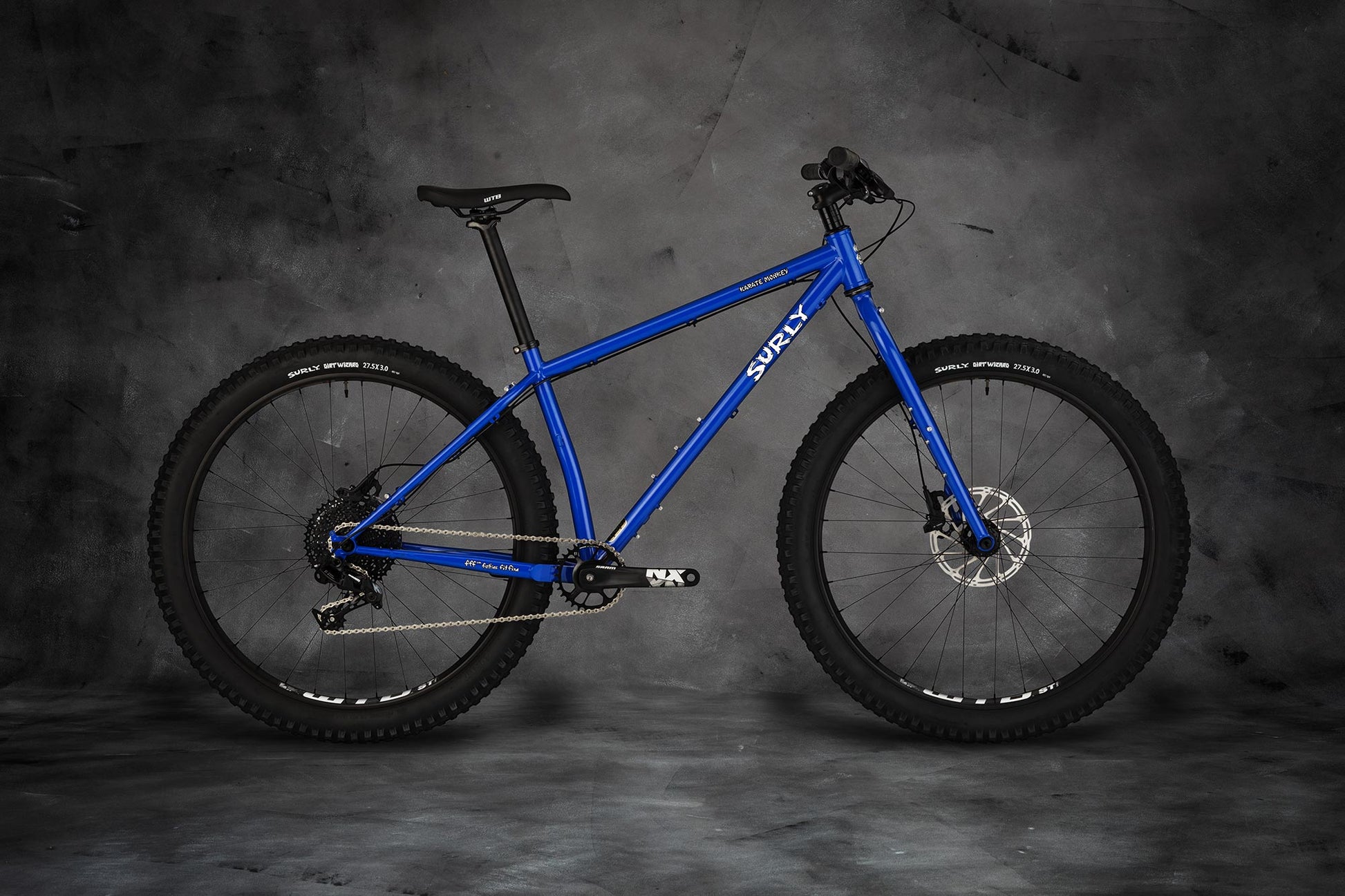

Karate Monkey

Karate Monkey

$1,899.00 USD
$1,899.00 USD
Sale Sold out
SIZE Small (16) Medium (18) Large (20) xLarge (22)
Reach 394.9 415.1 428.6 440.1
Stack 591.1 602.5 614.0 628.2
Head Tube Angle 71.0° 71.5° 72.0° 72.0°
Head Tube Length 100.0 100.0 110.0 125.0
Seat Tube Length 406.4 457.2 508.0 558.8
BB Drop 68.0 68.0 68.0 68.0
Wheelbase 1046.1 1064.9 1076.8 1093.0
Chainstay Length 431.0 431.0 431.0 431.0
Top Tube Length, Actual 557.7 575.0 589.9 607.1
Top Tube Length, Effective 575.6 599.3 616.3 632.2
Seat Tube Angle 73.0° 73.0° 73.0° 73.0°
Standover Height 762.9 792.7 822.5 853.5
Fork Length 468.0 468.0 468.0 468.0
Fork Rake 43.0 43.0 43.0 43.0

All dimensions are preliminary and subject to change * Standover is measured from the top of the TT, at the center, with a tire measuring approximately Ø737mm

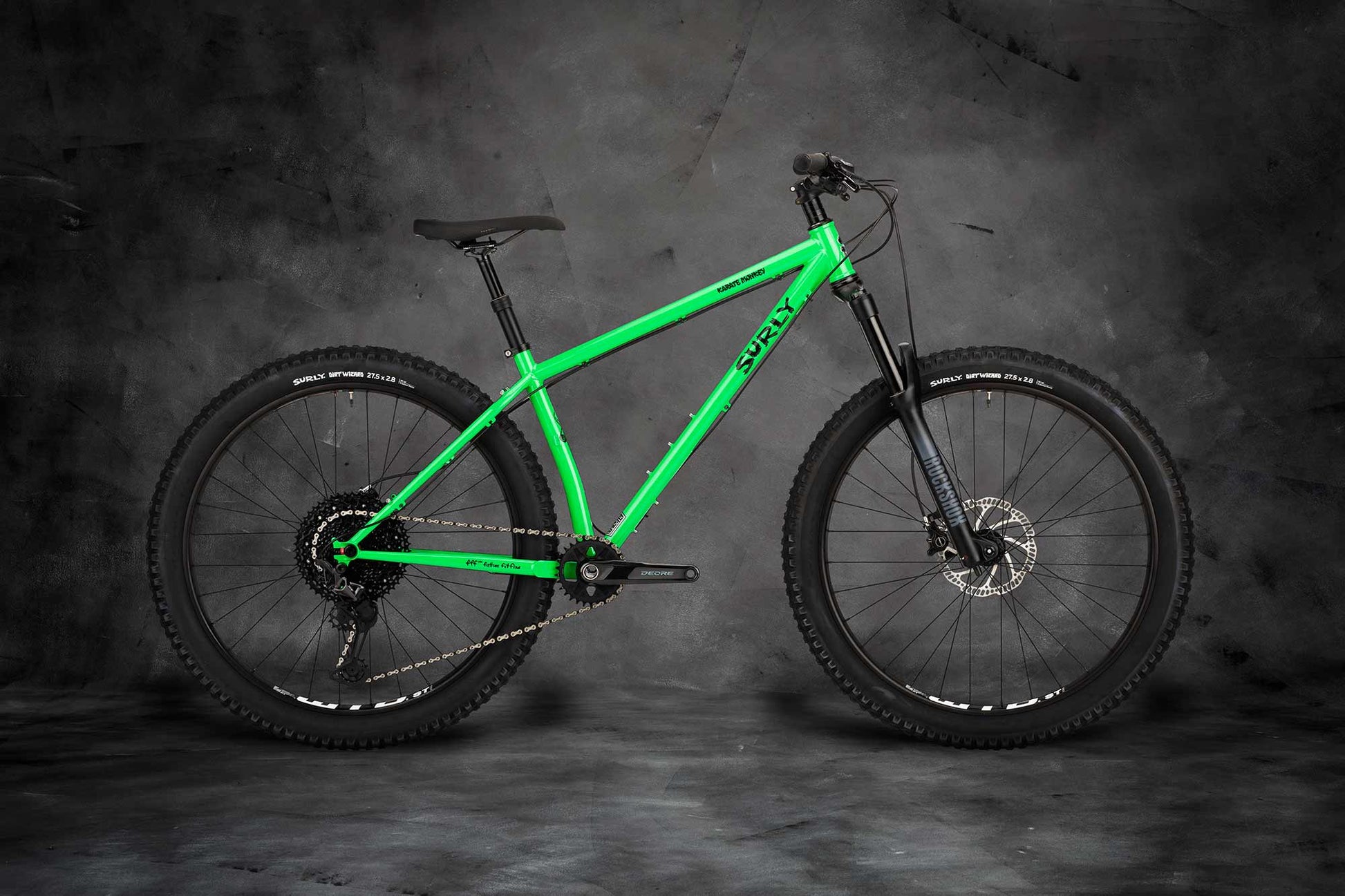

140mm Suspension Fork

SIZE XS SM MD LG XL
Reach 361 387 412 434 457
Stack 607 607 608 617 627
Head Tube Angle 67.5° 67.5° 67.5° 67.5° 67.5°
Head Tube Length 100 100 100 110 120
Seat Tube Length 330 368 419 470 521
BB Drop 44 44 44 44 44
Wheelbase 1071 1096 1121 1147 1172
Chainstay Length 423 423 423 423 423
Top Tube Length, Actual 549.7 560.4 575 597.5 624.5
Top Tube Length, Effective 565 590 615 640 665
Seat Tube Angle 71.5° 71.5° 71.5° 71.5° 71.5°
Standover Height 757 775 797 826 855
Stem Length 60 70 70 70 80
Stem Angle 7° 7° 7° 7° 7°
Handlebar Width 750 750 800 800 800
Crank Length 170 170 175 175 175
Fork Length 521 521 521 521 521
Fork Rake 51 51 51 51 51
View full details
