Surly Bikes

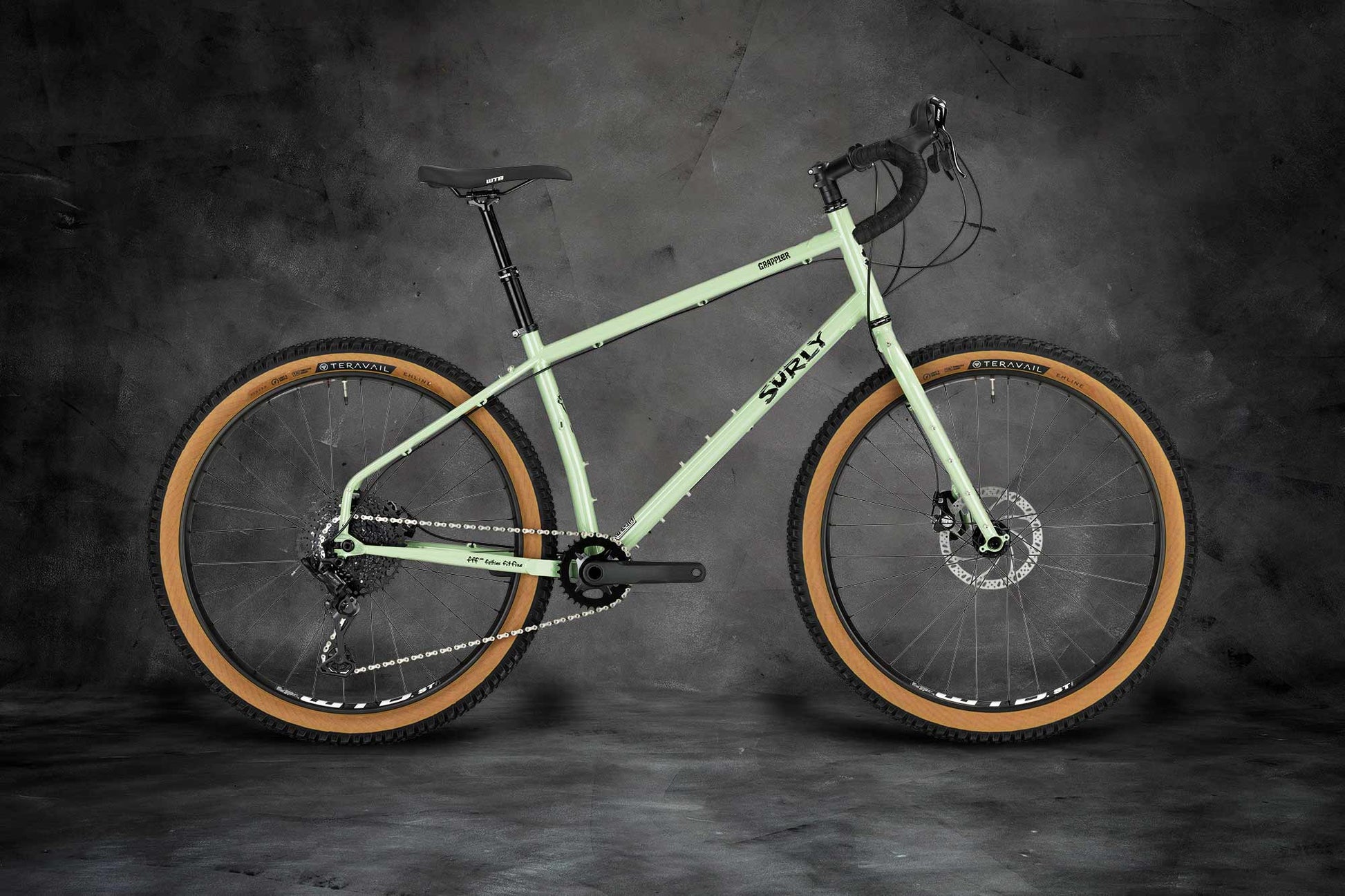

Grappler
Grappler
Regular price
$1,399.00 USD
Regular price
Sale price
$1,399.00 USD
Unit price
/
per
Couldn't load pickup availability
| SIZE | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Rider Height | 1.42m+ | 1.52m+ | 1.65m+ | 1.75m+ | 1.85m+ |
| Reach | 381.0 | 405.0 | 420.0 | 444.0 | 458.0 |
| Stack | 585.0 | 604.0 | 623.0 | 641.0 | 660.0 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Head Tube Length | 160.0 | 180.0 | 200.0 | 220.0 | 240.0 |
| Seat Tube Length | 316.0 | 386.0 | 437.2 | 488.0 | 539.0 |
| BB Drop | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
| Wheelbase | 1057.0 | 1088.0 | 1109.0 | 1140.0 | 1162.0 |
| Chainstay Length | 425.0 | 425.0 | 425.0 | 425.0 | 425.0 |
| Top Tube Length, Effective | 560.0 | 590.0 | 610.0 | 640.0 | 660.0 |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover Height | 719.0 | 762.0 | 796.0 | 830.0 | 863.0 |
| Stem Length | 60 or 70 | 60 or 70 | 60 or 70 | 60 or 70 | 60 or 70 |
| Stem Angle | 6.0° | 6.0° | 6.0° | 6.0° | 6.0° |
| Handlebar Width | 400 | 420 | 440 | 460 | 480 |
| Crank Length | 170 | 170 | 175 | 175 | 175 |
| Fork Length | 420 | 420 | 420 | 420 | 420 |
| Fork Rake | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
